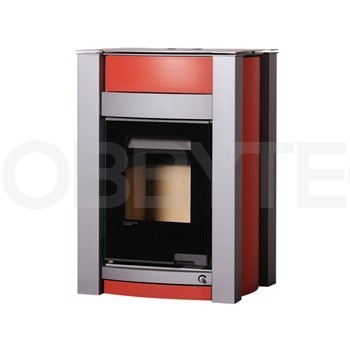

KALMAR 11 D red - hot stove
New products from HS Flamingo. Most modern hot stoves
that meet the needs of even the most demanding customers. Highly efficient and environmentally friendly. Technology secondary combustion efficiencies of over 80%. A unique solution that provides an easy transition from the hot water for hot-air heating method. Made from the finest materials, according to technology that meets the strictest European standards. Equipped with a standard ochlazovaci' loop protecting against overheating. Tertiary air for complete combustion and a constant supply of air. Option to connect external air supply is guaranteed. Variant integrated electronic regulation of air automatically protects against overheating.
Choose for yourself how will your stove
use. Two performances of boilers and possibility to operate as hot air, it is Aquaflam VARIO!
Design, colors, POWER, CONTROL:4 DESIGN SERIES
Saporo, Kalmar, Lend and Burma is a complete design offer stoves Aquaflam Vario.SELECT COLOR OPTIONS
For stoves Saporo, Lend, Kalmar is available 5 colors - gray, cream, red, and two luxury - brown velvety and creamy metallic.
Burma stoves are supplied with tiles in patterns maple, walnut and bleached oak.SELECTION OF PERFORMANCE
Stoves are supplied with water exchanger. The customer has the choice between two performances: 3 - 9 kW and 5 - 11kW hydronic performance.REGULATION
The selection includes two types of controls stoves. Manual, using rods and electronic, using a potentiometer with a temperature safety sensor.WARM / warm air VERSION
If you want to drown without heat, it can easily replace it with a plug (deflector) s whose presence can drown in a hot-air stoves.REPLACEMENT OF TILES
In addition, the stove Burma is possible to replace tiles at any moment of their operation.
|Power range (kW)||7-15|
|The efficiency of the stove (%)||80.47|
|Efficiency (%)||> 80|
|Heating capacity approx (m3)||140-300|
|External air supply||Yes|
|Tertiary air supply||Yes|
|type stoves||hot water, double wall convection|
|Rated power (kW)||11|
|Material||5 mm sheet (combustion chamber), 3mm plate (body), fire clay|
|Standard||EN 13229, BImSchV - Stufe 2, 15a B-VG, DINplus, Flamme Verte|
|Emissions of CO (at 13% O2) (%)||.0996|
|The average flue gas temperature (° C)||255|
|Operating draft (Pa)||12-14|
|The volume of the heat exchanger||10.2|
|Log length (cm)||45|
|Fuel||wood, wood briquettes|
|Fuel consumption (kg / h)||3.2|
|Maximum operating pressure (bar)||2.5|
|glass type||straight, luxury blackened|
