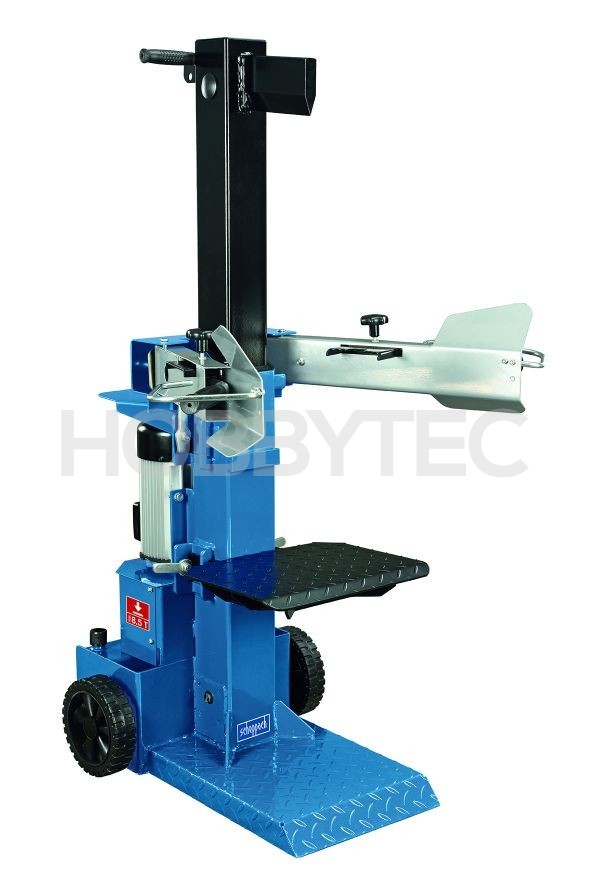

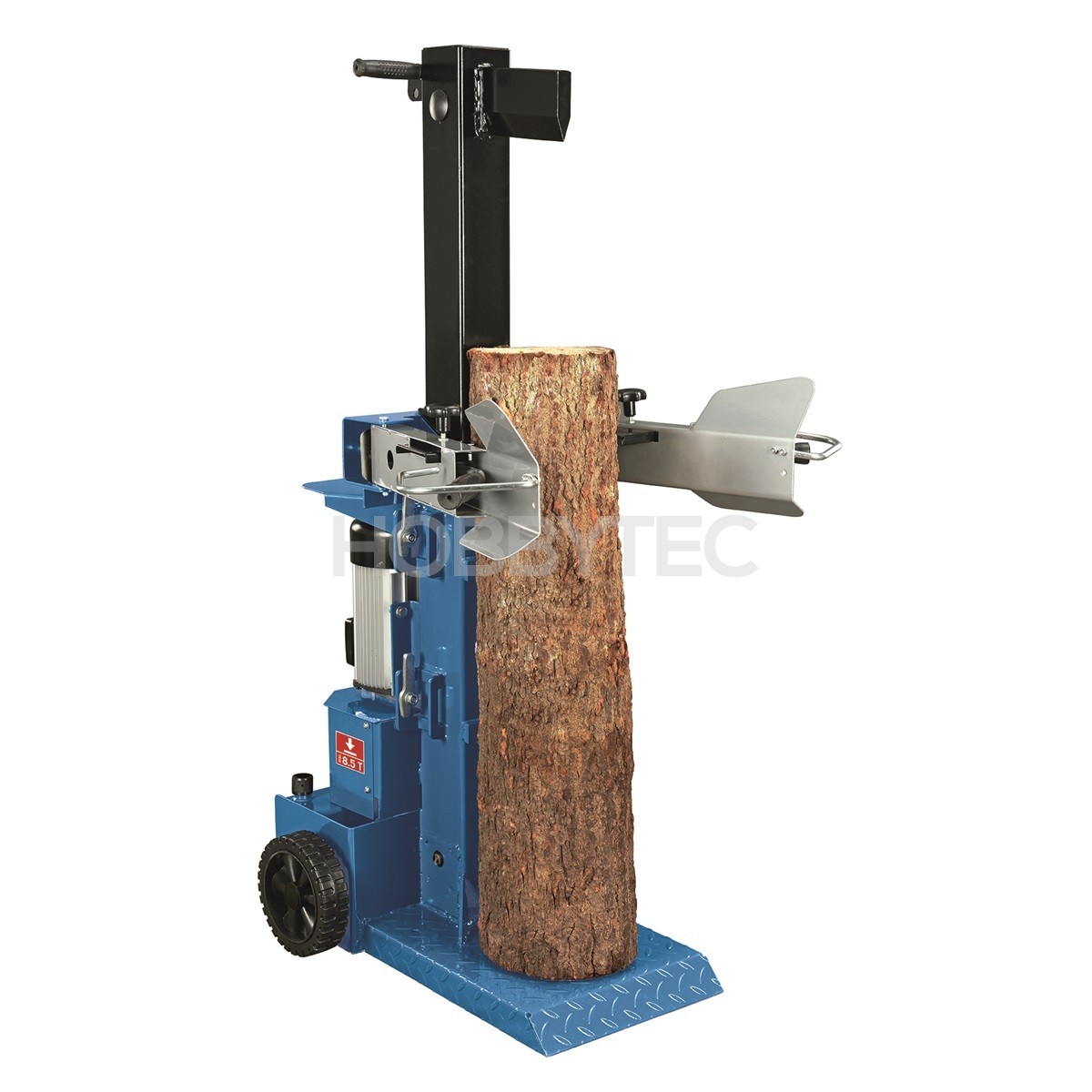

HL 850 - vertical splitter Wood 8.5 tWood splitter Scheppach HL 850 is due to its low-lying base unique product in the category of 8-9 tons. Low base will not only greatly facilitate handling heavier logs, but significantly, as with larger machines, contributing to the overall stiffness and stability of the entire machine. Users also appreciate the easy handling machine by a transport handle, wheels and acceptable weight machines, as well as very fast movement of the piston, which considerably reduces the time needed to work, sophisticated security features, perfectly protecting the machine operation, robust construction guarantees a long service life and service facilities largest producer splitters in Europe. The machine, thanks to the additional sliding table offers the possibility of splitting logs of different lengths in three different positions. The machine can purchase an optional extension or four-spoke wedge that serve excellent for cutting thicker or long logs. Superior technology Scheppach you always saves time and your pocket.
VARIO
Do splitter is built Vario system, which allows you to adjust the working length of the piston by size chunks. Eliminating the need for you to wait until the piston retracts into the correct position and the work is done much faster.
Other elements splitters
Splitter has a very high rate of return movement of the piston 24 cm / s, the next element is the new generation of pumps that develop at the same pressure at a lower claim on engine performance. With these advantages can handle per unit of time more splitting cycles than other machines. The work is done not only faster but also save significant amounts of electricity.
Dimensions: 830x630x1470 mm
| engine type | 400V, 50Hz |
| Power Consumption (W) | 3500 |
| Speed (rev / min) | 1400 |
| Splitting pressure (t) | 8.5 |
| Splitting speed (cm / s) | 5.4 |
| Back speed (cm / s) | 24 |
| Log length (cm) | 58/84/125 |
| Diameter logs (cm) | 32 |
| Oil tank capacity (l) | 5 |
| Table height (mm) | 70/460/720 |
| Oil tank capacity (l) | 4.8 |
| Weight (kg): | 124.00 |
| Dimensions (cm): | 83 x 63 x 147 |
| Vol. C.: | 5905306903 |
